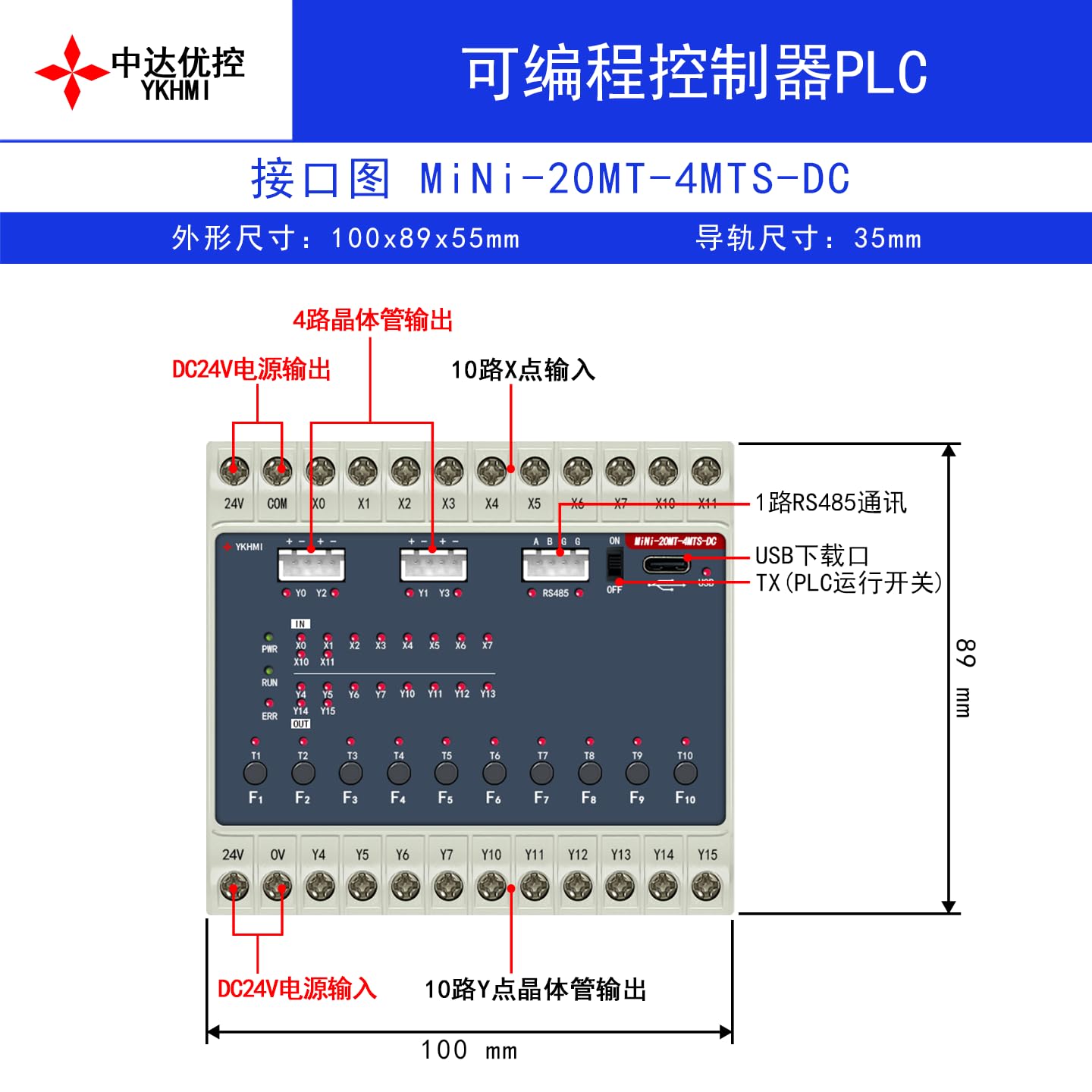

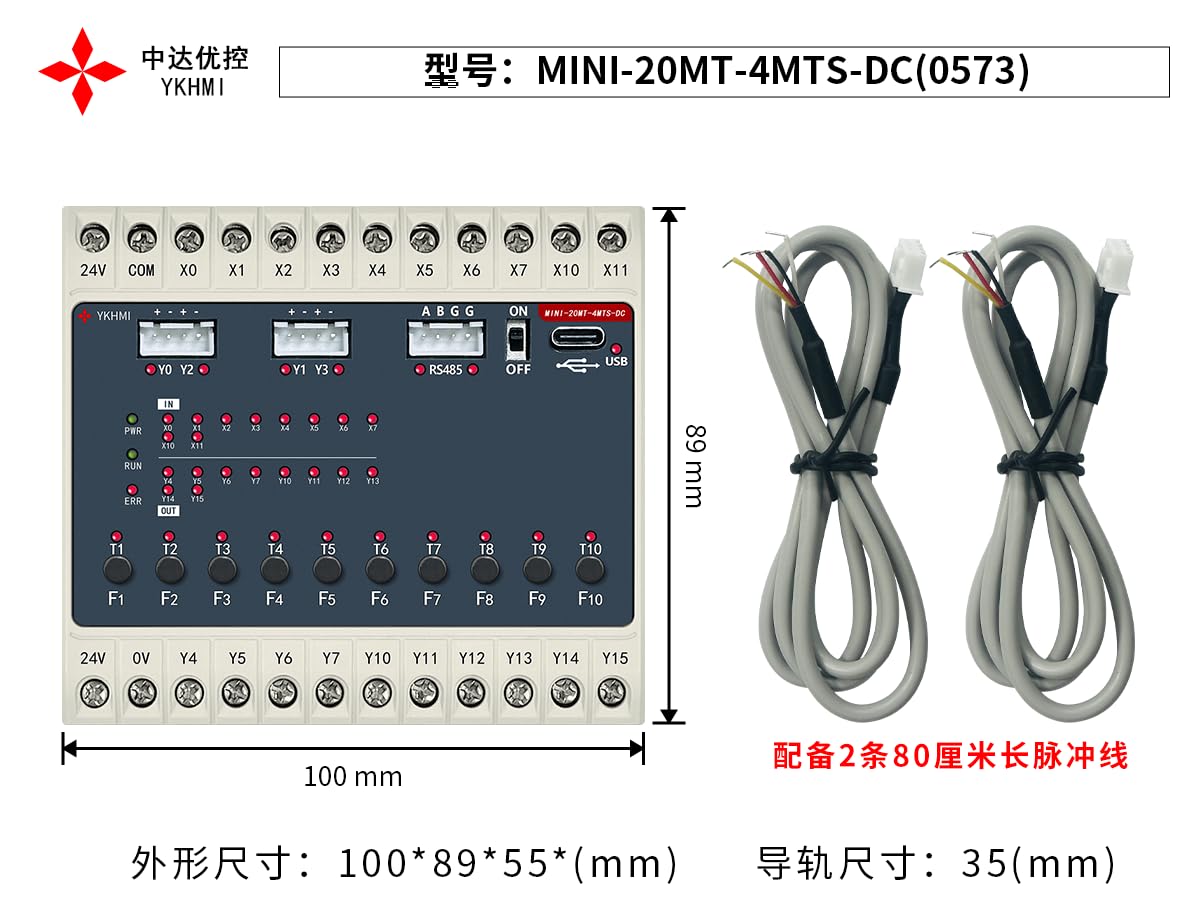

DC 24V Control Small PLC FX1S-20MT Programmable Logic Controller With 10 Input 10 Transistor Output, 2 High-Speed Pulse 100KHz For Encoder Sevor and Stepper, 1 Channel RS485 (Mini-20MT-4MTS-DC)

PLC FX1S-20MT Programmable Logic Controller With 10 Input 10 Transistor Output, 2 High-Speed Pulse 100KHz for Sevor or Stepper, Have RS485 Port, Use DC 24V Power Supply (Mini-20MT-4MTS-DC Attention: 1. When outputting at point Y, the internal and negative terminals of the power supply are conductive 2. Connect the load directly, do NOT to connect it in reverse 3. It is prohibited to connect the Y point to the positive pole of the power supply 1. -- PLC Type: Fully compatible with FX1S, 10 Input 10 Relay Output (NPN Type), have 1 Way RS485 protocol which support RTU Modbus, 2 High-Speed Pulse (5V Single) 100KHz for Servo or Stepper 2. PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming 3. Programing: Use the same Type C-USB Cable for download program from PC to PLC, pls install PLC’s USB driver first (Driver CH4), which we will share. 4. Download Process: Exactly same as GX Workers 2, we have guidance to share RS485 supports two protocols: 1. Communicate with touch screen, select Mitsubishi protocol, PLC does not need to do any communication program 2. Communicate with other PLCs, choose RS free protocol, PLC needs to write programs 3. Does not support Modbus RTU protocol Packing List: 1 X 20MT-4MTS PLC 1 X Cable for RS485 protocol connection

• -- PLC Type: Fully compatible with FX1S, 10 Input 10 Relay Output (NPN Type), have 1 Way RS485 protocol which support RS protocol, 2 High-Speed Pulse (5V Single) 100KHz for Servo or Stepper
• -- PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming
• -- Programing: Use the same Type C-USB Cable for download program from PC to PLC, pls install PLC’s USB driver first (Driver CH4), which we will share
• -- Download Process: Exactly same as GX Workers 2, we have guidance to share. Also USB can download data from PLC
