BOJACK 124-149 uf/MFD 165 VAC ±20% 50/60 Hz CD60 Round Motor Well Pump Start Capacitor
Product details
| Management number | 234089293 | Release Date | 2026/06/27 | List Price | US$3.84 | Model Number | 234089293 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BOJACK high quality Round Motor Well Pump Start Capacitor Model: CD60 Capacity: 124-149 uf/MFD Rated voltage:165 VAC Dielectric Material: metallized polypropylene film Color: black phenolic resin Shape: Round Frequence:50/60 Hz Capacitance tolerance：±20% This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz ,widely used in Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, refrigerators,washing machines and Compressors. It is small in size, lightweight, heat resisting and anti-explosion.
- Production Name:Motor Start Capacitor
- Model: CD60
- Capacity: 124-149 uf/MFD
- Rated voltage:165 VAC
- Operating temperature: 40℉ to + 149℉/-40℃to+65℃
| UPC | 762917166094 |
|---|---|
| ASIN | B0924VDNDH |
| Model | BJ-CD124-149 |
| Brand Name | BOJACK |
| Item Shape | Round |
| Capacitance | 149 Microfarad |
| Part Number | BJ-CD124-149 |
| Manufacturer | BOJACK |
| Material Type | Polypropylene |
| Mounting Type | Snap-In Mount |
| Operating Voltage | 165 Volts |
| Included Components | NO |
| Capacitance Tolerance | 20 |

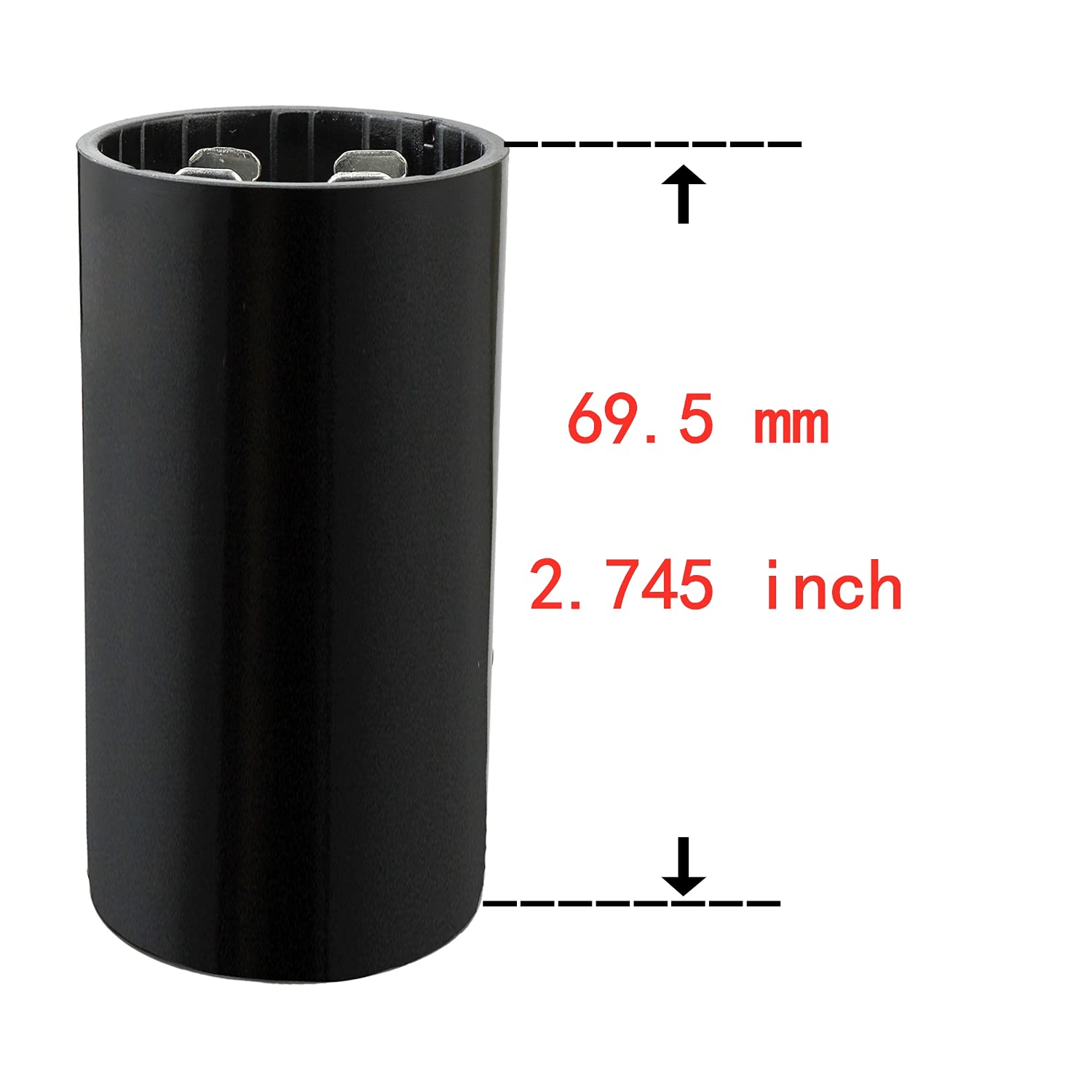

| Item Dimensions W x H | 1.43"W x 2.74"H |
| Upper Temperature Rating | 149 Degrees Fahrenheit |
| Maximum Storage Temperature | 149 Degrees Fahrenheit |
